Feflowlib: How to modify the project-file after converting a FEFLOW model.#
This example shows how to convert a FEFLOW model and how to modify the corresponding OGS project file and boundary meshes after conversion.
Necessary imports
import xml.etree.ElementTree as ET
import ogstools as ot
from ogstools.examples import feflow_model_2D_CT_t_560
1. Load a FEFLOW model (.fem) as a FeflowModel object to further work it. During the initialisation, the FEFLOW file is converted.
temp_dir = ot.definitions.temp_dir("converted_models", "examples")
feflow_model = ot.FeflowModel(feflow_model_2D_CT_t_560, temp_dir / "CT_model")
Get the mesh and run the FEFLOW model in OGS.
mesh = feflow_model.mesh
feflow_model.setup_prj(
end_time=1e11, time_stepping=[(1, 1e6), (1, 1e8), (1, 1e10)]
)
feflow_model.run()
ogs -o . /tmp/ogstools_root/examples/converted_models35b5d0850e5045b4bcb081afea466b46/CT_model.prj
['ogs', '-o', '.', '/tmp/ogstools_root/examples/converted_models35b5d0850e5045b4bcb081afea466b46/CT_model.prj']

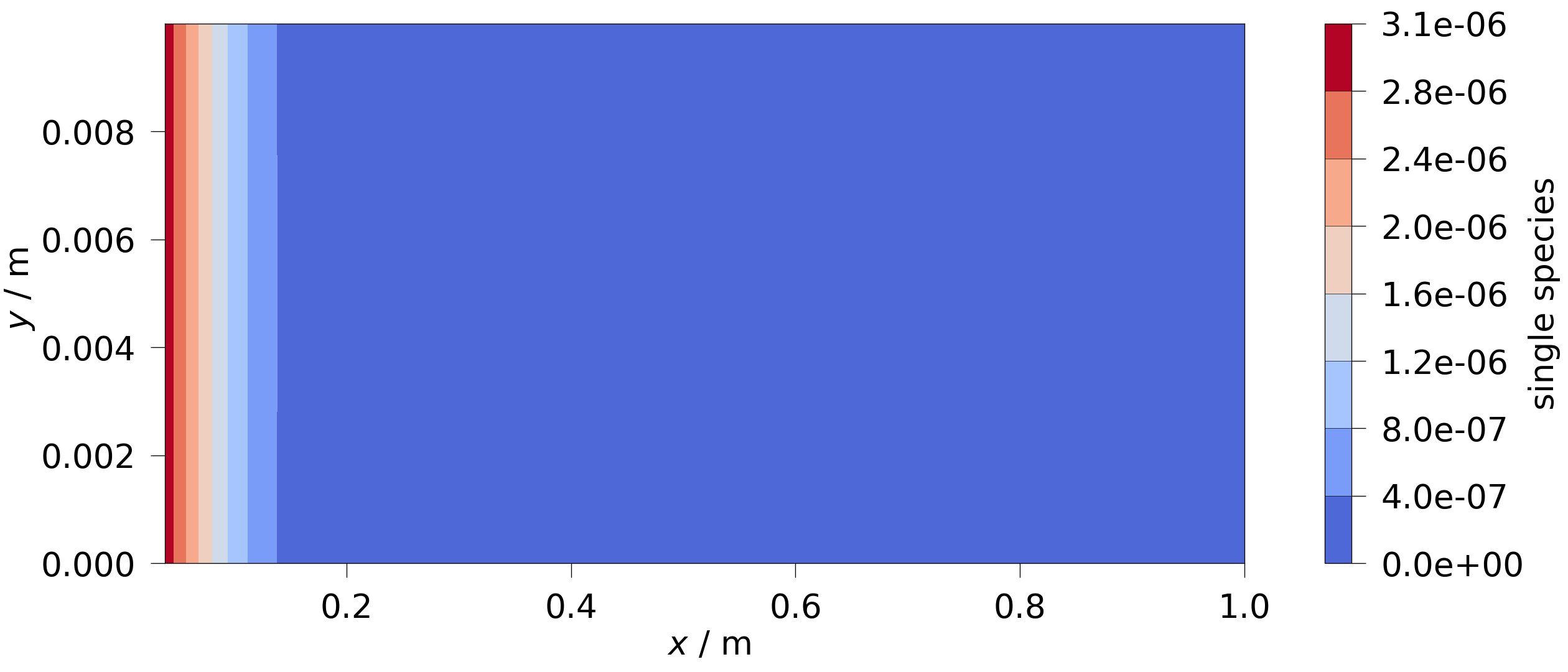

Plot the results.
ms = ot.MeshSeries(temp_dir / "CT_model.pvd")
ogs_sim_res = ms.mesh(ms.timesteps[-1])
ot.plot.contourf(ogs_sim_res, "single_species")
<Figure size 2520x1080 with 2 Axes>
4. Replace the scalar pore diffusion constant by a tensor to introducec anisotropy. How to manipulate a prj file also is explained in this example: # Run a simulation.
tensor = """
1e-9 1e-12
"""
feflow_model.project.replace_phase_property_value(
mediumid=0, component="single_species", name="pore_diffusion", value=tensor
)
feflow_model.save()
model_prjfile = ET.parse(temp_dir / "CT_model.prj")
ET.dump(model_prjfile)
<OpenGeoSysProject>
<meshes>
<mesh>CT_model.vtu</mesh>
<mesh>single_species_P_BC_MASS.vtu</mesh>
</meshes>
<processes>
<process>
<name>CT</name>
<type>ComponentTransport</type>
<coupling_scheme>staggered</coupling_scheme>
<integration_order>2</integration_order>
<specific_body_force>0 0</specific_body_force>
<secondary_variables>
<secondary_variable internal_name="darcy_velocity" output_name="v" />
</secondary_variables>
<process_variables>
<pressure>HEAD_OGS</pressure>
<concentration>single_species</concentration>
</process_variables>
</process>
</processes>
<media>
<medium id="0">
<phases>
<phase>
<type>AqueousLiquid</type>
<properties>
<property>
<name>viscosity</name>
<type>Constant</type>
<value>1</value>
</property>
<property>
<name>density</name>
<type>Constant</type>
<value>1</value>
</property>
</properties>
<components>
<component>
<name>single_species</name>
<properties>
<property>
<name>decay_rate</name>
<type>Constant</type>
<value>0.0</value>
</property>
<property>
<name>pore_diffusion</name>
<type>Constant</type>
<value>
1e-9 1e-12
</value>
</property>
<property>
<name>retardation_factor</name>
<type>Constant</type>
<value>16441.72737282367</value>
</property>
</properties>
</component>
</components>
</phase>
</phases>
<properties>
<property>
<name>porosity</name>
<type>Constant</type>
<value>0.10999999940395355</value>
</property>
<property>
<name>longitudinal_dispersivity</name>
<type>Constant</type>
<value>0.0</value>
</property>
<property>
<name>transversal_dispersivity</name>
<type>Constant</type>
<value>0.0</value>
</property>
<property>
<name>permeability</name>
<type>Constant</type>
<value>1.1574074074074073e-05</value>
</property>
</properties>
</medium>
</media>
<time_loop>
<processes>
<process ref="CT">
<nonlinear_solver>basic_picard</nonlinear_solver>
<convergence_criterion>
<type>DeltaX</type>
<norm_type>NORM2</norm_type>
<reltol>1e-6</reltol>
</convergence_criterion>
<time_discretization>
<type>BackwardEuler</type>
</time_discretization>
<time_stepping>
<type>FixedTimeStepping</type>
<t_initial>0</t_initial>
<t_end>100000000000.0</t_end>
<timesteps>
<pair>
<repeat>1</repeat>
<delta_t>1000000.0</delta_t>
</pair>
<pair>
<repeat>1</repeat>
<delta_t>100000000.0</delta_t>
</pair>
<pair>
<repeat>1</repeat>
<delta_t>10000000000.0</delta_t>
</pair>
</timesteps>
</time_stepping>
</process>
<process ref="CT">
<nonlinear_solver>basic_picard</nonlinear_solver>
<convergence_criterion>
<type>DeltaX</type>
<norm_type>NORM2</norm_type>
<reltol>1e-6</reltol>
</convergence_criterion>
<time_discretization>
<type>BackwardEuler</type>
</time_discretization>
<time_stepping>
<type>FixedTimeStepping</type>
<t_initial>0</t_initial>
<t_end>100000000000.0</t_end>
<timesteps>
<pair>
<repeat>1</repeat>
<delta_t>1000000.0</delta_t>
</pair>
<pair>
<repeat>1</repeat>
<delta_t>100000000.0</delta_t>
</pair>
<pair>
<repeat>1</repeat>
<delta_t>10000000000.0</delta_t>
</pair>
</timesteps>
</time_stepping>
</process>
</processes>
<output>
<type>VTK</type>
<prefix>/tmp/ogstools_root/examples/converted_models35b5d0850e5045b4bcb081afea466b46/CT_model</prefix>
<timesteps>
<pair>
<repeat>1</repeat>
<each_steps>1</each_steps>
</pair>
</timesteps>
<variables>
<variable>single_species</variable>
<variable>HEAD_OGS</variable>
</variables>
<fixed_output_times>100000000000.0</fixed_output_times>
</output>
<global_process_coupling>
<max_iter>1</max_iter>
<convergence_criteria>
<convergence_criterion>
<type>DeltaX</type>
<norm_type>NORM2</norm_type>
<reltol>1e-10</reltol>
</convergence_criterion>
<convergence_criterion>
<type>DeltaX</type>
<norm_type>NORM2</norm_type>
<reltol>1e-10</reltol>
</convergence_criterion>
</convergence_criteria>
</global_process_coupling>
</time_loop>
<parameters>
<parameter>
<name>C0</name>
<type>Constant</type>
<value>0</value>
</parameter>
<parameter>
<name>p0</name>
<type>Constant</type>
<value>0</value>
</parameter>
<parameter>
<name>single_species_P_BC_MASS</name>
<type>MeshNode</type>
<mesh>single_species_P_BC_MASS</mesh>
<field_name>single_species_P_BC_MASS</field_name>
</parameter>
</parameters>
<process_variables>
<process_variable>
<name>single_species</name>
<components>1</components>
<order>1</order>
<initial_condition>C0</initial_condition>
<boundary_conditions>
<boundary_condition>
<type>Dirichlet</type>
<mesh>single_species_P_BC_MASS</mesh>
<parameter>single_species_P_BC_MASS</parameter>
</boundary_condition>
</boundary_conditions>
</process_variable>
<process_variable>
<name>HEAD_OGS</name>
<components>1</components>
<order>1</order>
<initial_condition>p0</initial_condition>
</process_variable>
</process_variables>
<nonlinear_solvers>
<nonlinear_solver>
<name>basic_picard</name>
<type>Picard</type>
<max_iter>100</max_iter>
<linear_solver>general_linear_solver</linear_solver>
</nonlinear_solver>
</nonlinear_solvers>
<linear_solvers>
<linear_solver>
<name>general_linear_solver</name>
<lis>-i cg -p jacobi -tol 1e-10 -maxiter 100000</lis>
<eigen>
<solver_type>CG</solver_type>
<precon_type>DIAGONAL</precon_type>
<max_iteration_step>100000</max_iteration_step>
<error_tolerance>1e-10</error_tolerance>
</eigen>
</linear_solver>
</linear_solvers>
</OpenGeoSysProject>
Remove some points of the boundary mesh, which is part of the subdomains.
bounds = [0.037, 0.039, 0.003, 0.006, 0, 0]
new_bc_mesh = feflow_model.subdomains["single_species_P_BC_MASS"].clip_box(
bounds, invert=False
)
feflow_model.subdomains["single_species_P_BC_MASS"] = new_bc_mesh

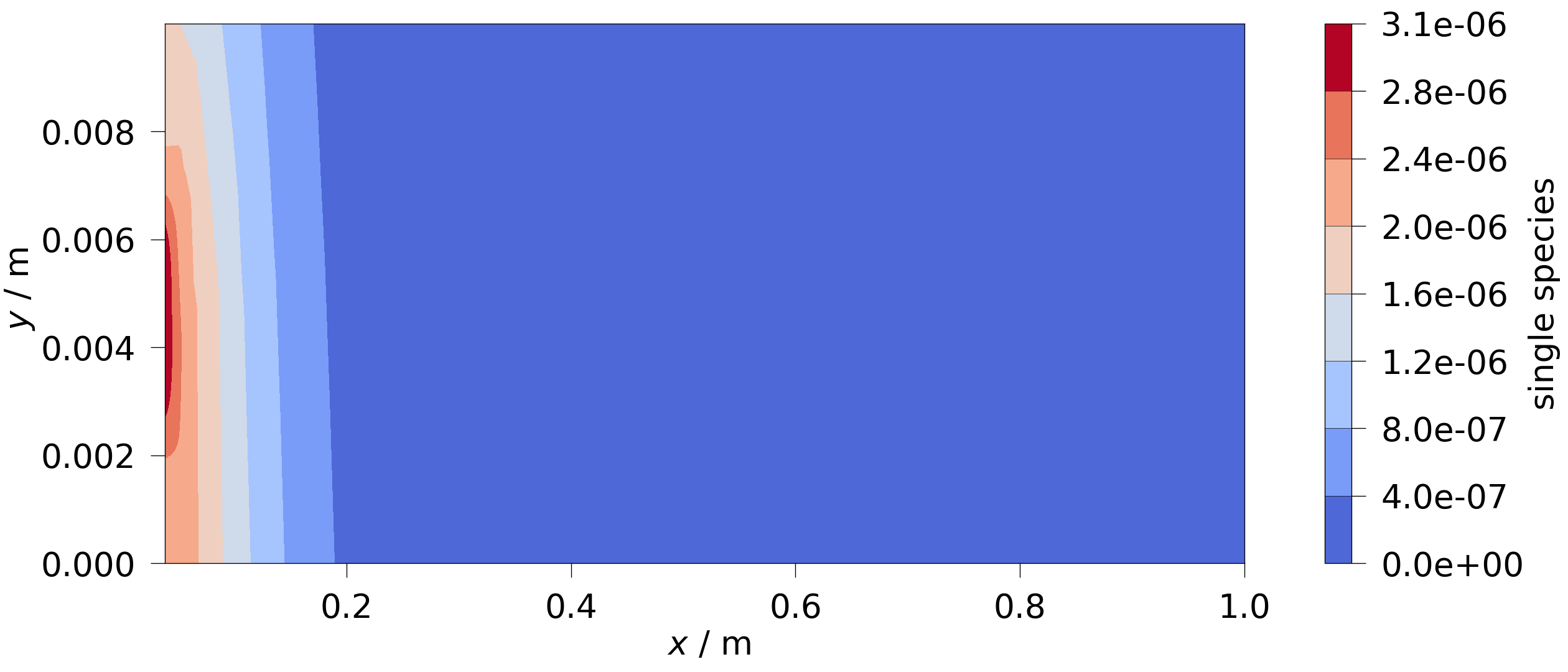

Run the model.
feflow_model.run(overwrite=True)
ms = ot.MeshSeries(temp_dir / "CT_model.pvd")
ogs_sim_res = ms.mesh(ms.timesteps[-1])
ot.plot.contourf(ogs_sim_res, "single_species")
ogs -o . /tmp/ogstools_root/examples/converted_models35b5d0850e5045b4bcb081afea466b46/CT_model.prj
['ogs', '-o', '.', '/tmp/ogstools_root/examples/converted_models35b5d0850e5045b4bcb081afea466b46/CT_model.prj']
<Figure size 2520x1080 with 2 Axes>
Total running time of the script: (0 minutes 1.982 seconds)
