Calculate differences between meshes#

Section author: Feliks Kiszkurno (Helmholtz Centre for Environmental Research GmbH - UFZ)

This example shows how to calculate differences between meshes.

import ogstools as ot
from ogstools import examples

Difference between two meshes#

The simplest case is calculating the difference between two meshes. For this example, we read two different timesteps from a MeshSeries. It is not required that they belong to the same MeshSeries object. As long, as the meshes contain the variable of interest, the difference will work fine.

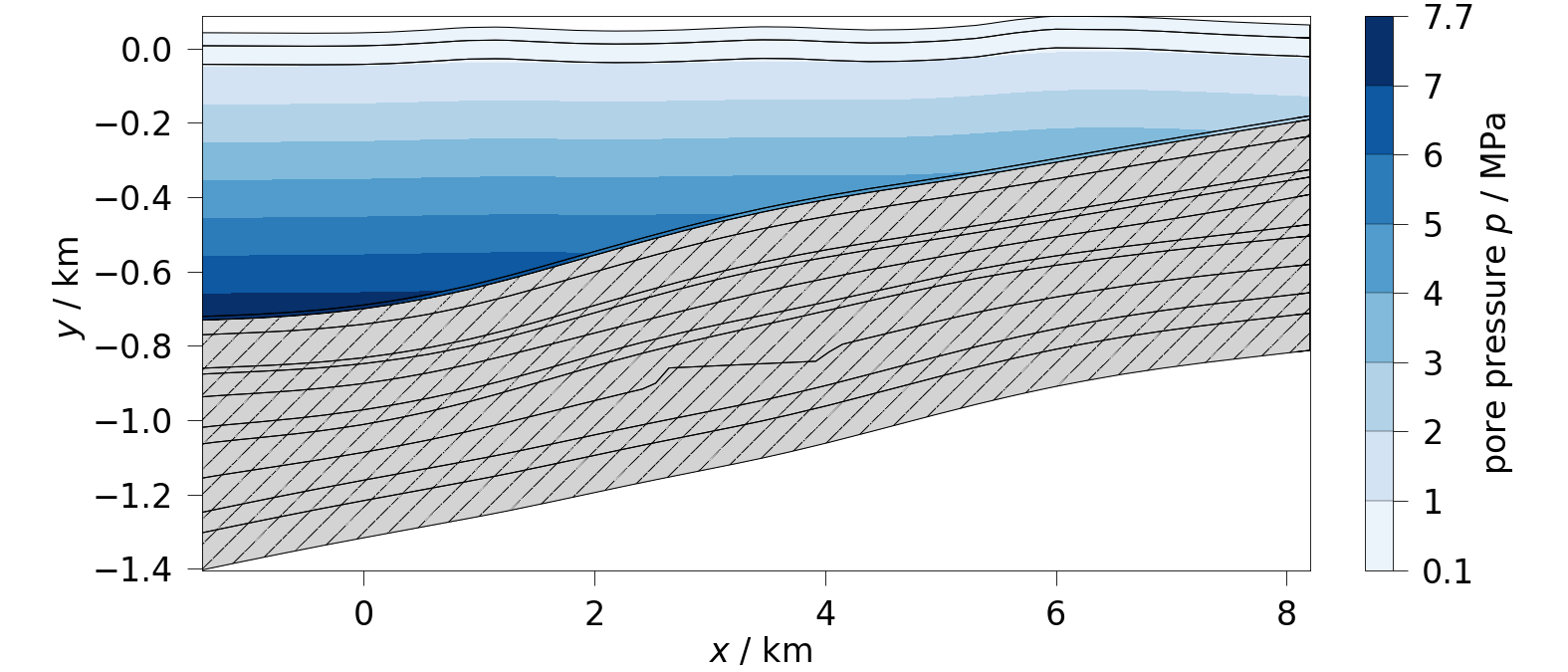

mesh_series = examples.load_meshseries_THM_2D_PVD().scale(spatial=("m", "km"))
mesh1 = mesh_series.mesh(0)
mesh2 = mesh_series.mesh(-1)

The following call will return a mesh containing the difference of the variable between the two provided meshes. Then we plot the difference:

mesh_diff = mesh1.difference(mesh2, ot.variables.temperature)
fig = mesh_diff.plot_contourf(ot.variables.temperature)

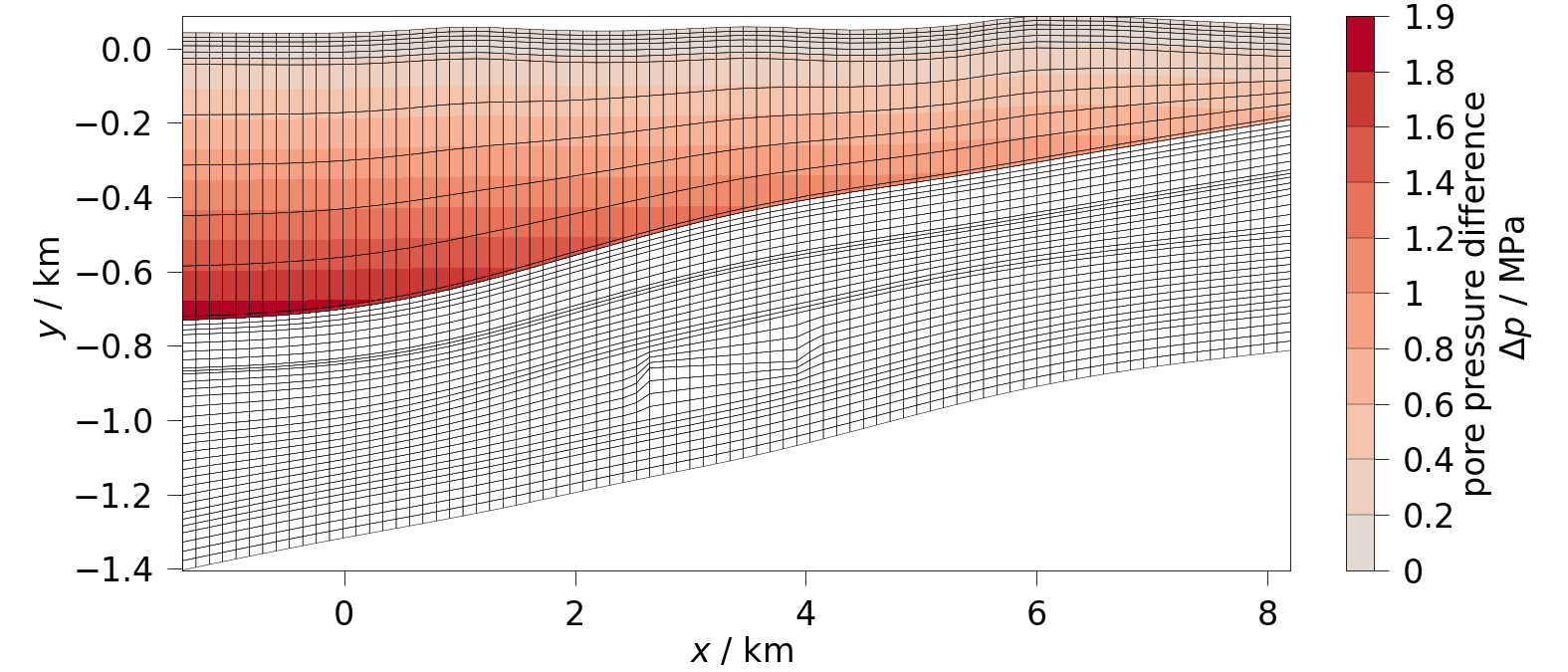

plot calculate diff

Difference between two meshes of different topology#

This examples shall demonstrate how we can compare meshes of different size and/or topology. To demonstrate this, we create two artificial meshes.

quad_mesh = custom_mesh(lengths=0.8, element_order=1, quads=True)
tri_mesh = custom_mesh(lengths=1, element_order=2, quads=False)
OGS finished with project file /tmp/tmpm3gc32dd/default.prj.
Execution took 0.12471556663513184 s
Project file written to output.

OGS finished with project file /tmp/tmpm3gc32dd/default.prj.
Execution took 0.26106715202331543 s
Project file written to output.

They are visibly quite similar, aside from the difference in cell type and size:

fig = ot.plot.contourf([quad_mesh, tri_mesh], ot.variables.stress["xx"])
plot calculate diff

To better quantify it we form the difference and plot the result. The base mesh of which we subtract from provides the topology to show the differences. Thus we see data here on the quad mesh. Be aware that comparing different topologies is inherently affected by interpolation.

diff_mesh = quad_mesh.difference(tri_mesh, ot.variables.stress)
fig = diff_mesh.plot_contourf(ot.variables.stress.difference["xx"])
plot calculate diff

Doing it the other way around shows the difference on the tri-mesh. Here, we see, that the subtracted mesh was smaller then the base mesh and thus, the which are outside of the domain of the second mesh are masked.

diff_mesh = tri_mesh.difference(quad_mesh, ot.variables.stress)
fig = diff_mesh.plot_contourf(ot.variables.stress.difference["xx"])
plot calculate diff

Differences between multiple meshes#

It is possible to calculate the difference between multiple meshes at the same time. Multiple meshes can be provided either as list or numpy arrays. 4 ways of calculating the difference are presented here.

Pairwise difference#

In order to calculate pairwise differences, two lists or arrays of equal length have to be provided as the input. They can contain an arbitrary number of different meshes, as long as their length is equal.

Consider the two following lists:

\[ \begin{align}\begin{aligned}\begin{split}\text{List}_{1} = \begin{bmatrix} A_{1} & B_{1} & C_{1}\\ \end{bmatrix}\end{split}\\\begin{split}\text{List}_{2} = \begin{bmatrix} A_{2} & B_{2} & C_{2}\\ \end{bmatrix}\end{split}\end{aligned}\end{align} \]

The output array will contain following differences between meshes:

\[\begin{split}\begin{bmatrix} A_{1}-A_{2} & B_{1}-B_{2} & C_{1}-C_{2}\\ \end{bmatrix}\end{split}\]

and will have the same shape as the input lists. As in the example below:

meshes_1 = [mesh1] * 3
meshes_2 = [mesh2] * 3

mesh_diff_pair_wise = ot.meshlib.difference_pairwise(
    meshes_1, meshes_2, ot.variables.temperature
)
print(f"Length of mesh_list1: {len(meshes_1)}")
print(f"Length of mesh_list2: {len(meshes_2)}")
print(f"Shape of mesh_diff_pair_wise: {mesh_diff_pair_wise.shape}")
Length of mesh_list1: 3
Length of mesh_list2: 3
Shape of mesh_diff_pair_wise: (3,)

Matrix difference - one array#

If only one list or array is provided, the differences between every possible pair of objects in the array will be returned.

Consider following list:

\[\begin{split}\text{List} = \begin{bmatrix} A & B & C\\ \end{bmatrix}\end{split}\]

The output array will contain following differences between meshes:

\[\begin{split}\begin{bmatrix} A-A & B-A & C-A\\ A-B & B-B & C-B \\ A-C & B-C & C-C \\ \end{bmatrix}\end{split}\]

and will have shape of (len(mesh_list), len(mesh_list)). As in the following example:

mesh_list = [mesh1, mesh2, mesh1, mesh2]

mesh_diff_matrix = ot.meshlib.difference_matrix(
    mesh_list, variable=ot.variables.temperature
)
print(f"Length of mesh_list1: {len(mesh_list)}")
print(f"Shape of mesh_list1: {mesh_diff_matrix.shape}")
Length of mesh_list1: 4
Shape of mesh_list1: (4, 4)

Matrix difference - two arrays of different length#

Unlike difference_pairwise(), difference_matrix() can accept two lists/arrays of different lengths. As in Section 3, the differences between all possible pairs of meshes in both lists/arrays will be calculated.

Consider following lists:

\[\begin{split}\text{List}_1 = \begin{bmatrix} A_1 & B_1 & C_1\\ \end{bmatrix}\end{split}\]
\[\begin{split}\text{List}_2 = \begin{bmatrix} A_2 & B_2 \\ \end{bmatrix}\end{split}\]

The output array will contain following differences between meshes:

\[\begin{split}\begin{bmatrix} A_1-A_2 & A_1-B_2 \\ B_1-A_2 & B_1-B_2 \\ C_1-A_2 & C_1-B_2 \\ \end{bmatrix}\end{split}\]

and will have a shape of (len(mesh_list_matrix_1), len(mesh_list_matrix_2)). As in the following example:

mesh_list_matrix_1 = [mesh1, mesh2, mesh1]
mesh_list_matrix_2 = [mesh2, mesh1]

mesh_diff_matrix = ot.meshlib.difference_matrix(
    mesh_list_matrix_1, mesh_list_matrix_2, ot.variables.temperature
)
print(f"Length of mesh_list_matrix_1: {len(mesh_list_matrix_1)}")
print(f"Length of mesh_list_matrix_2: {len(mesh_list_matrix_2)}")
print(f"Shape of mesh_diff_matrix: {mesh_diff_matrix.shape}")
Length of mesh_list_matrix_1: 3
Length of mesh_list_matrix_2: 2
Shape of mesh_diff_matrix: (3, 2)

Total running time of the script: (0 minutes 1.752 seconds)
