Creating meshes from pyvista surfaces

For this example we create meshes from pyvista surfaces. See other examples for different meshing algorithms.

from itertools import pairwise
from shutil import which

import ogstools as ot
from ogstools.mesh import create

# Tetgen is an optional, external (non-pip) requirement - see the note in
# `docs/user-guide/third-party.md` for supported versions/platforms.
tetgen_present = which("tetgen") is not None

if tetgen_present:
    bounds = (-200, 210, -200, 210)
    args = {"bound2D": bounds, "amplitude": 100, "spread": 100, "n": 40}
    gaussians = [
        create.Gaussian2D(**args, height_offset=h) for h in [0, -100, -200]
    ]
    surfaces = [create.Surface(g, mat_id) for mat_id, g in enumerate(gaussians)]
    layers = [create.Layer(sf1, sf2) for sf1, sf2 in pairwise(surfaces)]
    ls = create.LayerSet(layers)

    mesh = ls.to_region_tetrahedron(40).mesh
else:
    mesh = None

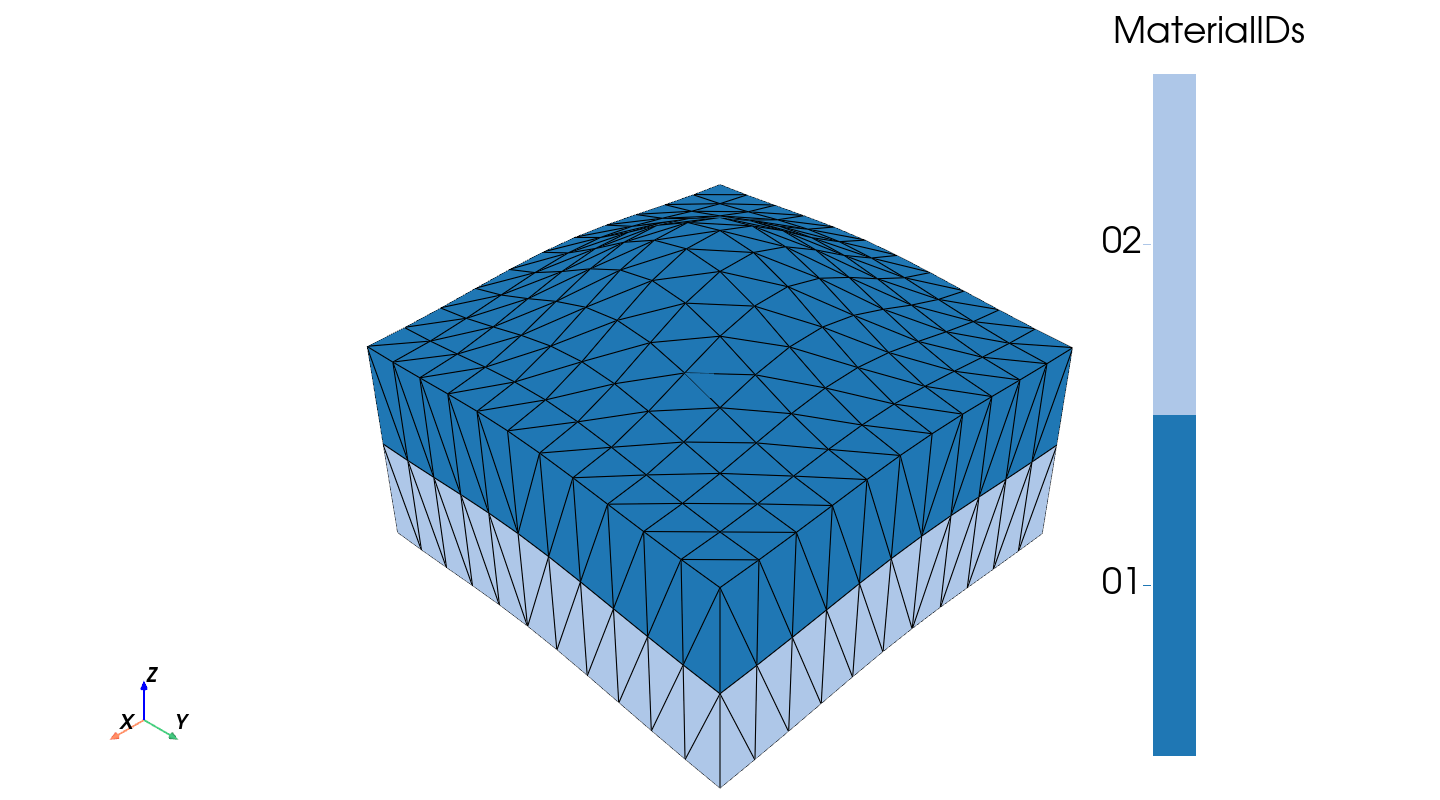

Visualize the prism mesh

if tetgen_present:
    plotter = ot.plot.contourf(mesh, ot.variables.material_id)
    plotter.show()

Static Scene

Interactive Scene
