OGSTools Framework - Quick Start

This is a condensed version of the OGSTools workflow.

Workflow: Setup → Compose → Run → Analyze → Store

For detailed explanations of each step, see OGSTools Framework - Complete Workflow Guide.

import ogstools as ot
from ogstools.examples import load_meshes_simple_lf, load_project_simple_lf

1. Setup: Load Project and Meshes

project = load_project_simple_lf()
meshes = load_meshes_simple_lf()

model = ot.Model(project=project, meshes=meshes)

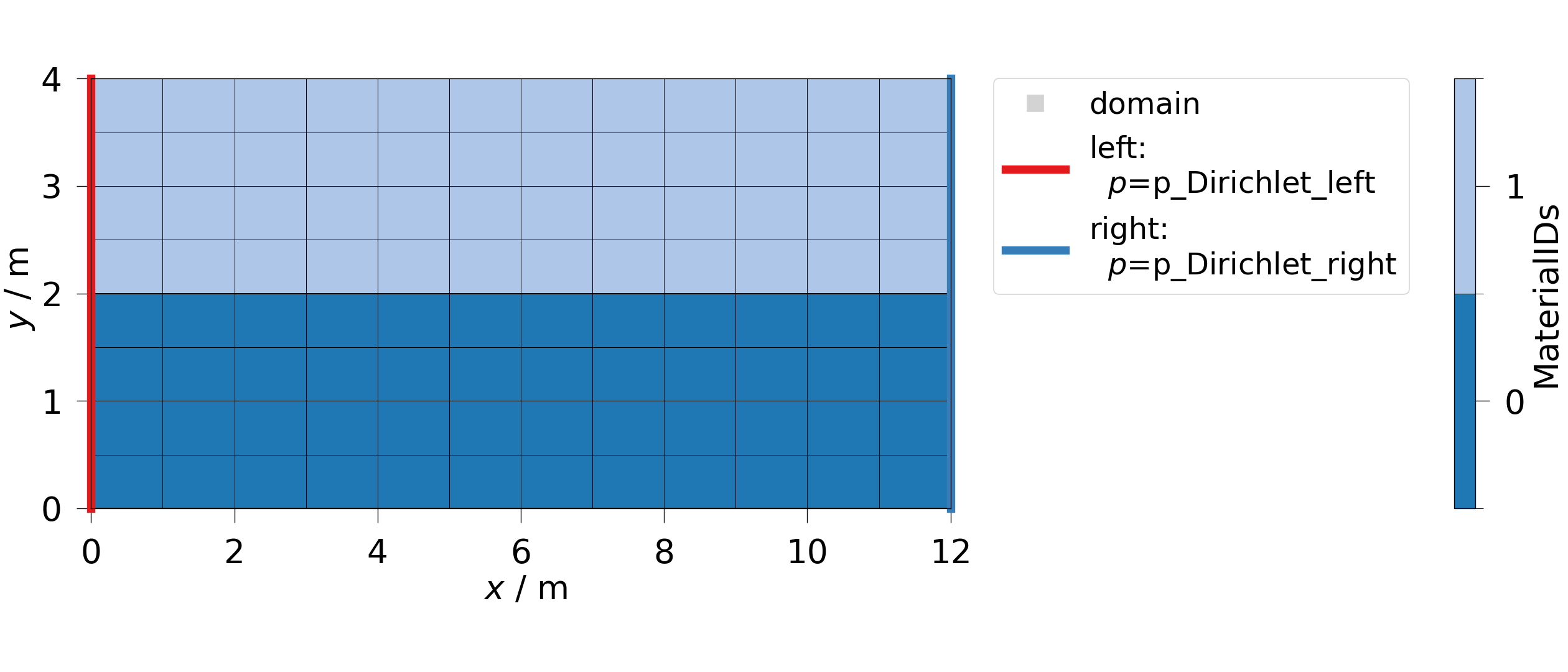

# Visualize setup with boundary conditions
fig = model.plot_constraints()
fig.show()

2. Run: Execute Simulation

sim = model.run()
print(f"Simulation status: {sim.status_str}")

Simulation status: Status: completed successfully (results available)

3. Analyze: Visualize Results

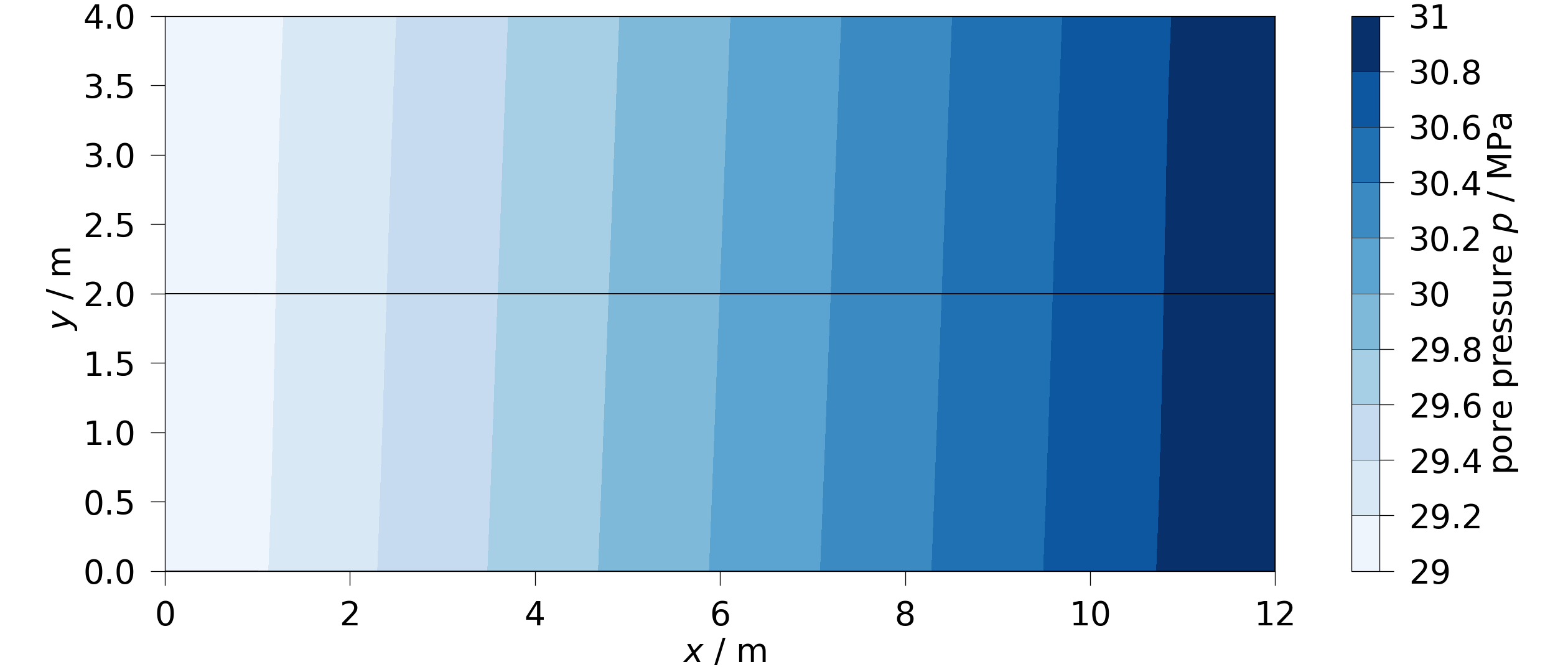

# Plot final pressure distribution
fig = ot.plot.contourf(sim.meshseries[-1], "pressure")
fig.show()

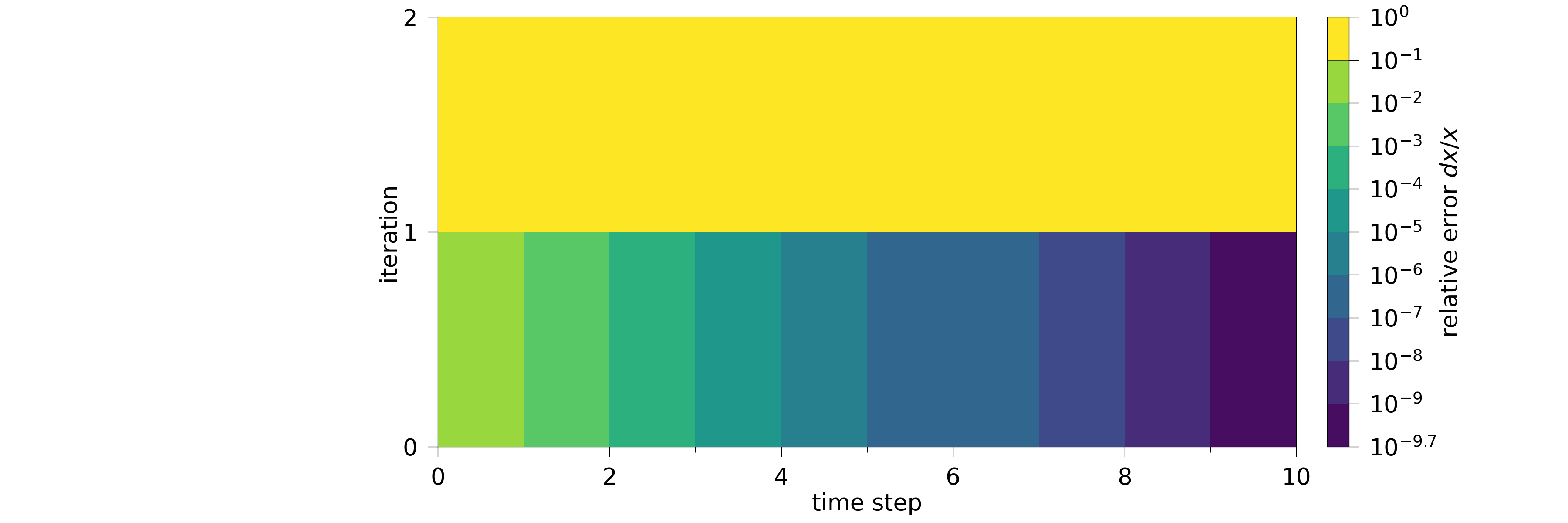

Plot convergence behavior

fig = sim.log.plot_convergence(metric="dx_x")
fig.show()

4. Store: Save Simulation

tmp = ot.definitions.temp_dir("framework_short", "examples")
sim.save(tmp / "mysim", archive=True)

[]

Next Steps

• Full tutorial: OGSTools Framework - Complete Workflow Guide

• Preprocessing: Creating a BHE mesh (Borehole Heat Exchanger)

• Visualization: How to Create Time Slices

• Storage: Saving and Loading Models - The Storage System
