Modifying integration point data in bulk meshes

import numpy as np

import ogstools as ot
from ogstools import examples

Looking at the original integration point data

A bulk mesh file is loaded. It already contains IP data.

mesh = ot.mesh.read(examples.mechanics_2D)
ip_data = ot.mesh.IPdata(mesh)
with np.printoptions(precision=2):
    print(ip_data.info)

{'sigma_ip': IPdict(order=2, num_components=4, values=
pyvista_ndarray([[ -7987910.41, -18461460.32, -10186589.92,   2921306.85],
                 [ -7640889.57, -18208899.37,  -9853812.67,   2937028.72],
                 [ -7602079.8 , -18188409.8 ,  -9817763.32,   2940074.05],
                 ...,
                 [ -1281262.73, -10831452.68,  -3367376.43,     54694.16],
                 [ -1058147.92, -10608337.87,  -3144261.63,     54694.16],
                 [ -1228033.93, -10778223.88,  -3314147.64,     54694.16]],
                shape=(6960, 4))),
 'epsilon_ip': IPdict(order=2, num_components=4, values=
pyvista_ndarray([[ 8.35e-04, -3.95e-03,  0.00e+00,  1.01e-03],
                 [ 8.35e-04, -3.95e-03,  0.00e+00,  1.01e-03],
                 [ 8.35e-04, -3.95e-03,  0.00e+00,  1.01e-03],
                 ...,
                 [ 3.87e-04, -1.39e-03,  0.00e+00,  1.02e-05],
                 [ 3.87e-04, -1.39e-03,  0.00e+00,  1.02e-05],
                 [ 3.87e-04, -1.39e-03,  0.00e+00,  1.02e-05]],
                shape=(6960, 4))),
 'epsilon_m_ip': IPdict(order=2, num_components=4, values=
pyvista_ndarray([[ 1.14e-03, -3.64e-03,  3.03e-04,  1.01e-03],
                 [ 1.16e-03, -3.63e-03,  3.22e-04,  1.01e-03],
                 [ 1.16e-03, -3.62e-03,  3.24e-04,  1.01e-03],
                 ...,
                 [ 4.25e-04, -1.35e-03,  3.81e-05,  1.02e-05],
                 [ 4.38e-04, -1.34e-03,  5.08e-05,  1.02e-05],
                 [ 4.29e-04, -1.35e-03,  4.11e-05,  1.02e-05]],
                shape=(6960, 4)))}

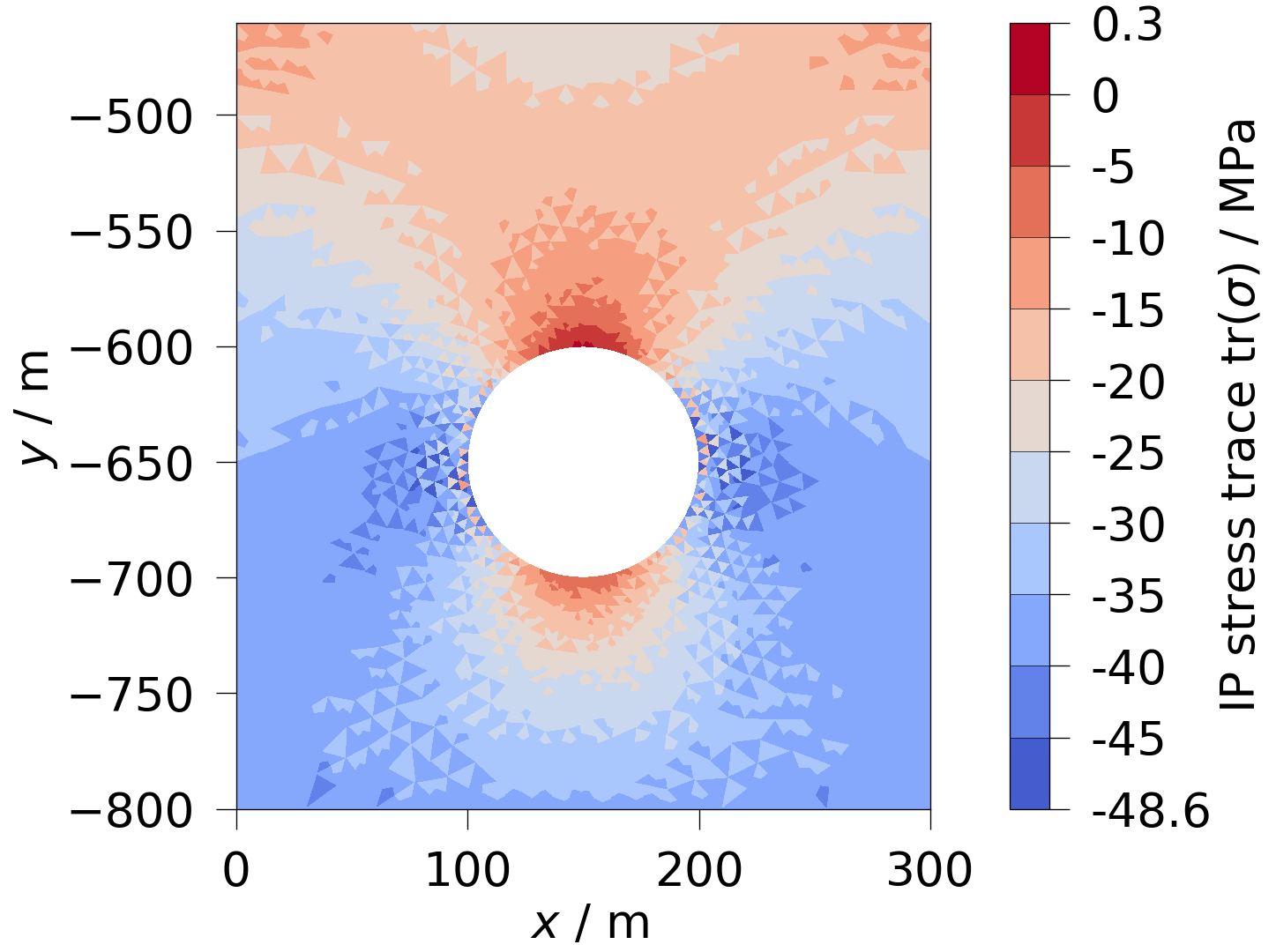

Let’s visualize the trace of the integration point stresses on an artificial mesh where each integration point corresponds to one cell.

sigma_ip = ot.variables.stress.replace(
    data_name="sigma_ip", output_name="IP_stress"
)
ip_mesh = ot.mesh.to_ip_mesh(mesh)
fig = ot.plot.contourf(ip_mesh, sigma_ip.trace)

There are multiple ways in which you can modify the integration point data.

Deleting existing integration point data

del ip_data["epsilon_m_ip"]

Adding new integration point data

const = np.full(ip_mesh.n_cells, 0.0)
isotropic = np.full((ip_mesh.n_cells, 4), [1, 1, 1, 0])
ip_data.set("new_scalar", order=2, num_components=1, values=const)
ip_data.set("new_tensor", order=2, num_components=4, values=isotropic)

Modifying existing integration point data

ip_data["epsilon_ip"].values *= 0

A more complex example: We reduce the first three components of the integration point stresses close to the hole by using a mask based on the distance to the hole’s center.

pts = ip_mesh.cell_centers().points
mask = np.hypot(pts[:, 0] - 150, pts[:, 1] + 650) < 90
ip_data["sigma_ip"].values[mask, :3] -= 2.1e6

Modify integration point data of a material group

Sometimes it might be needed to modify only the integration point data of a specific material group. Here, top part of the mesh has material id 0, while the rest has id 1. We now modify the horizontal integration point stress of the top material.

ip_cloud = ot.mesh.to_ip_point_cloud(mesh)
cell_map = mesh.find_containing_cell(ip_cloud.points)
ip_mat_ids = mesh["MaterialIDs"][cell_map]
ip_data["sigma_ip"].values[ip_mat_ids == 0, 0] -= 10e6

We can see, that the above modifications are reflected in the mesh.

with np.printoptions(precision=2):
    print(ip_data.info)

{'sigma_ip': IPdict(order=2, num_components=4, values=
pyvista_ndarray([[ -7987910.41, -18461460.32, -10186589.92,   2921306.85],
                 [ -7640889.57, -18208899.37,  -9853812.67,   2937028.72],
                 [ -7602079.8 , -18188409.8 ,  -9817763.32,   2940074.05],
                 ...,
                 [-11281262.73, -10831452.68,  -3367376.43,     54694.16],
                 [-11058147.92, -10608337.87,  -3144261.63,     54694.16],
                 [-11228033.93, -10778223.88,  -3314147.64,     54694.16]],
                shape=(6960, 4))),
 'epsilon_ip': IPdict(order=2, num_components=4, values=
pyvista_ndarray([[ 0., -0.,  0.,  0.],
                 [ 0., -0.,  0.,  0.],
                 [ 0., -0.,  0.,  0.],
                 ...,
                 [ 0., -0.,  0.,  0.],
                 [ 0., -0.,  0.,  0.],
                 [ 0., -0.,  0.,  0.]], shape=(6960, 4))),
 'new_scalar': IPdict(order=2, num_components=1, values=
array([0., 0., 0., ..., 0., 0., 0.], shape=(6960,))),
 'new_tensor': IPdict(order=2, num_components=4, values=
array([[1, 1, 1, 0],
       [1, 1, 1, 0],
       [1, 1, 1, 0],
       ...,
       [1, 1, 1, 0],
       [1, 1, 1, 0],
       [1, 1, 1, 0]], shape=(6960, 4)))}

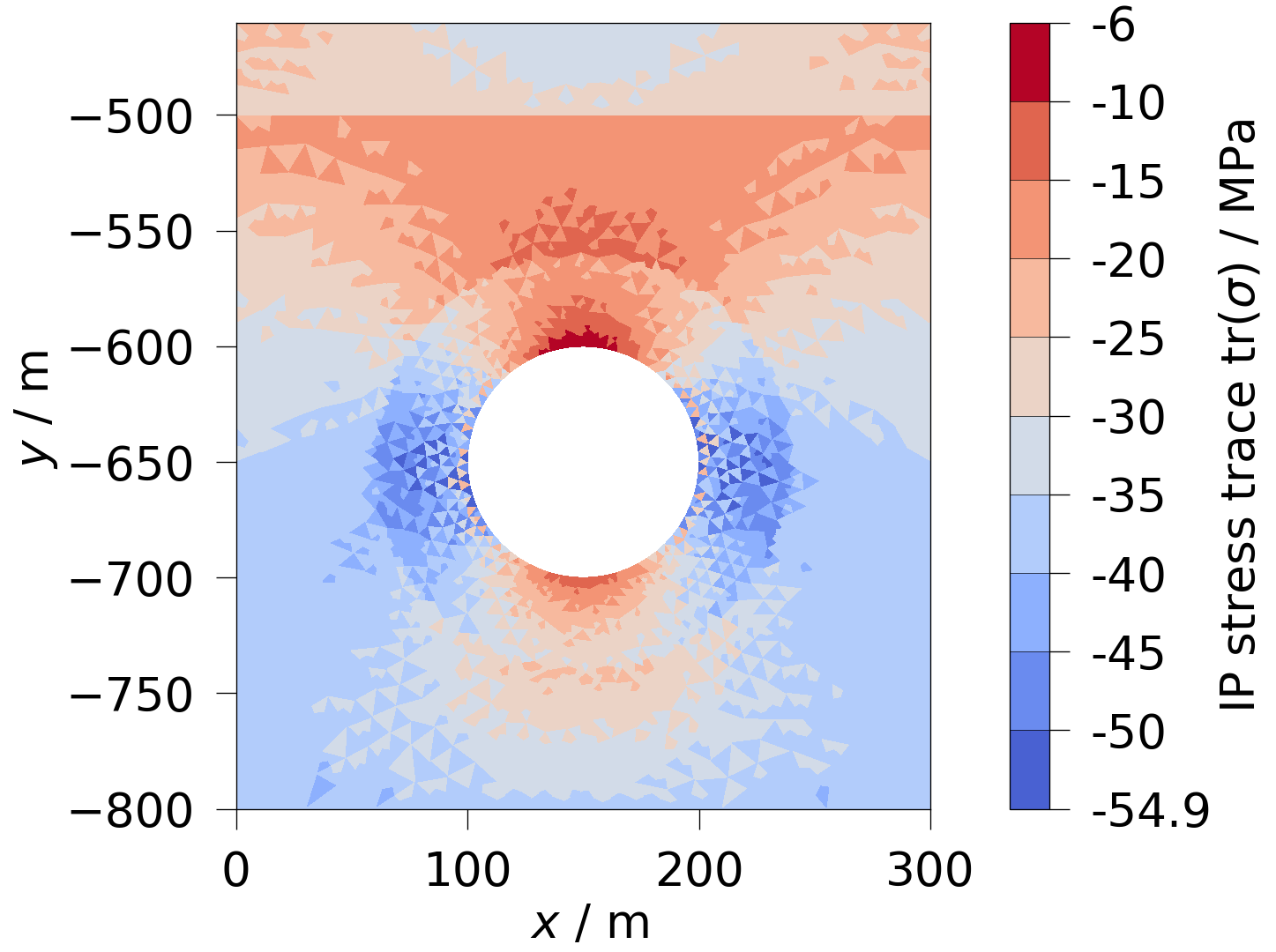

fig = ot.plot.contourf(ot.mesh.to_ip_mesh(mesh), sigma_ip.trace)

Remove a material group

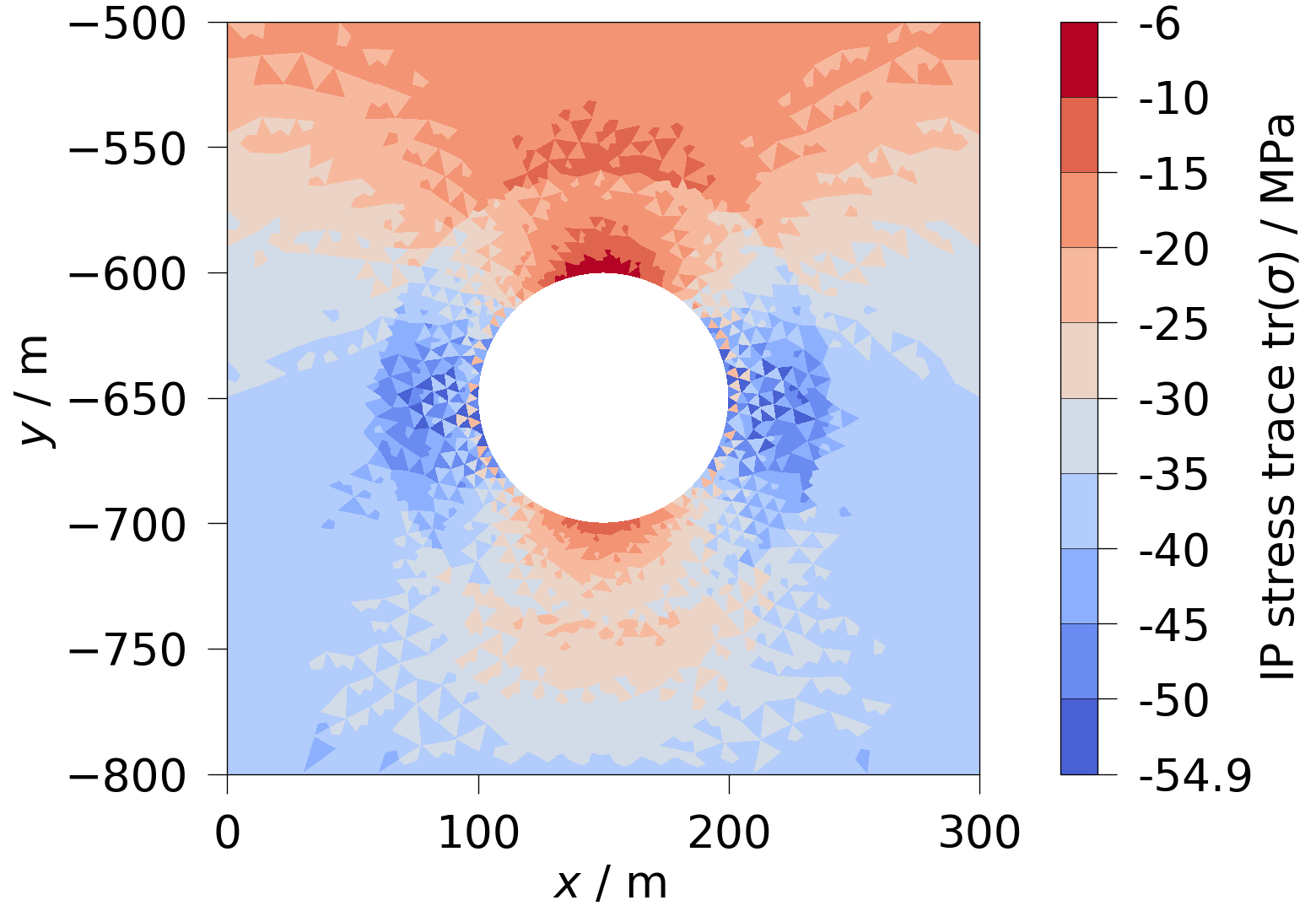

The following code recipe removes a material group from the mesh and updates the integration point data accordingly.

modified = mesh.threshold([1, 1], scalars="MaterialIDs")
cell_map = modified.find_containing_cell(ip_cloud.points)
# -1 marks those points, where no cell ws found, i.e. those which got removed.
mask = cell_map[cell_map != -1]
for data in ot.mesh.IPdata(modified).values():
    data.values = data.values[mask]

fig = ot.plot.contourf(ot.mesh.to_ip_mesh(modified), sigma_ip.trace)
